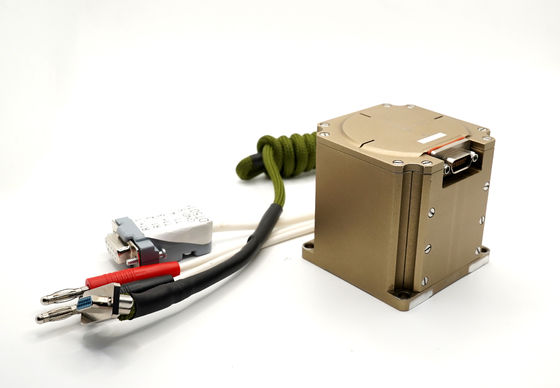

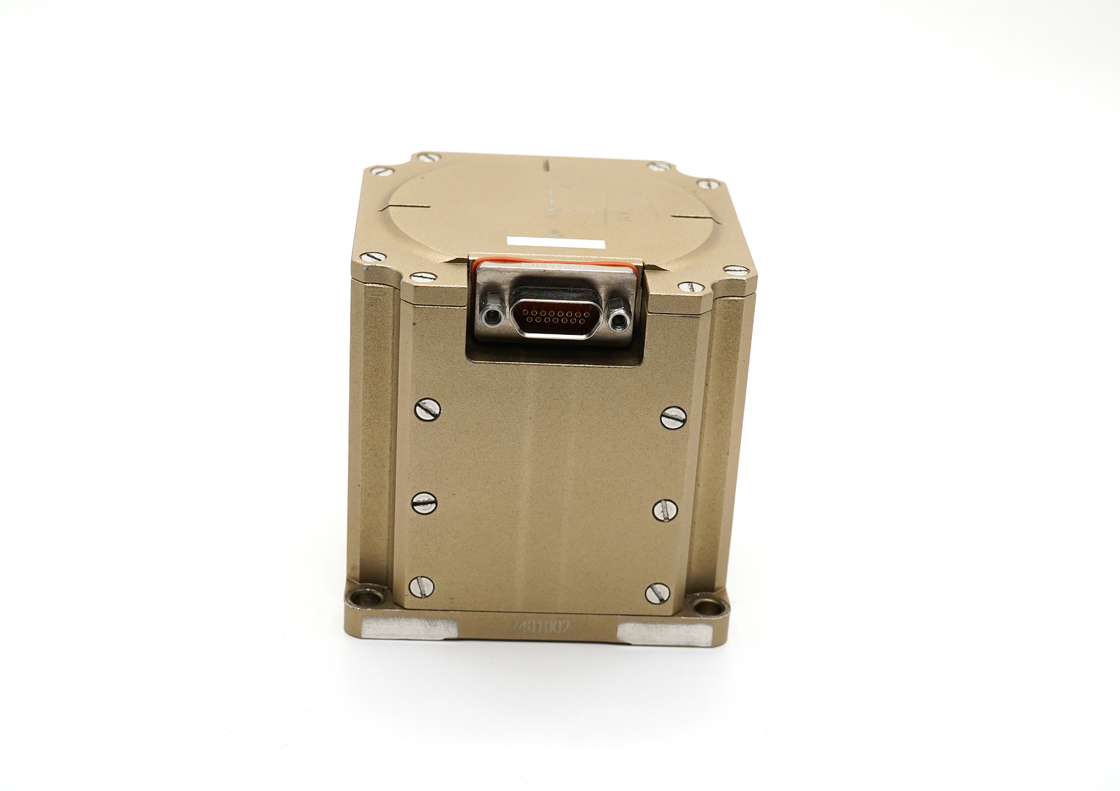

Precision Gyrocompass North Finder for Oil & Gas Exploration

Precision Gyrocompass North Finder for Oil & Gas Exploration

ब्रांड नाम: FIREPOWER
मॉडल संख्या: NF102
एमओक्यू: 1
कीमत: 2000$
भुगतान की शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन
आपूर्ति करने की क्षमता: 500/महीना
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
उत्तर की मांग सटीकता:
0.7 °
वोल्टेज आपूर्ति:
9 ~ 12 वी
झुकाव अनुकूलता:
±15
आउटपुट इंटरफ़ेस:
आरएस422/आरएस232
परिचालन तापमान:
-30 ℃ ~ + 65 ℃
उत्पाद का वजन:
≤ 400 ग्राम
पैकेजिंग विवरण:
स्पंज + कार्टन
आपूर्ति की क्षमता:
500/महीना
प्रमुखता देना:

precision gyrocompass for oil exploration

,

gyro north finder with warranty

,

oil gas exploration gyrocompass

उत्पाद वर्णन
Precision Gyrocompass North Finder for Oil & Gas Exploration
Technical Specifications
Supply voltage: 9 ~ 12 V
Product dimensions: 60*60*60/46*53 (4*M4)
Product weight: ≤ 400 g
Operating temperature: -30℃ ~ +65℃
Storage temperature: -55℃ ~ +85℃
Main Parameter Indexes
Project Unit Industrial grade N F -102
Output mode RS422/RS232
Connector J30JM-15ZKP
Power consumption W ≤1
Azimuth error ° ±0.7
Navigation tracking error ° ±0.7 (≤5min, rotation speed ≤10°/s)
Tilt adaptability ° ±15
J30JM-15ZKSP Wiring Definition
Serial number Definition Type Interface
1 R- Input RS422 user interface
2 R+ Input
3 T+ Output
4 T- Output
5 IO+ Input External North Seeking Switch
6 IO- Output
7 +12VGND Input Power ground
8 +12VGND Input
9 RS232_GND GND RS232 user interface
10 RS232_TX Output
11 RS232_RX Input
12 NC Reserved
13 NC Reserved
14 +12V Input 12 Power supply input
15 +12V Input
