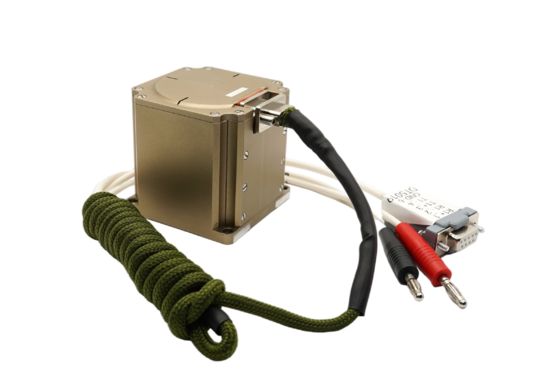

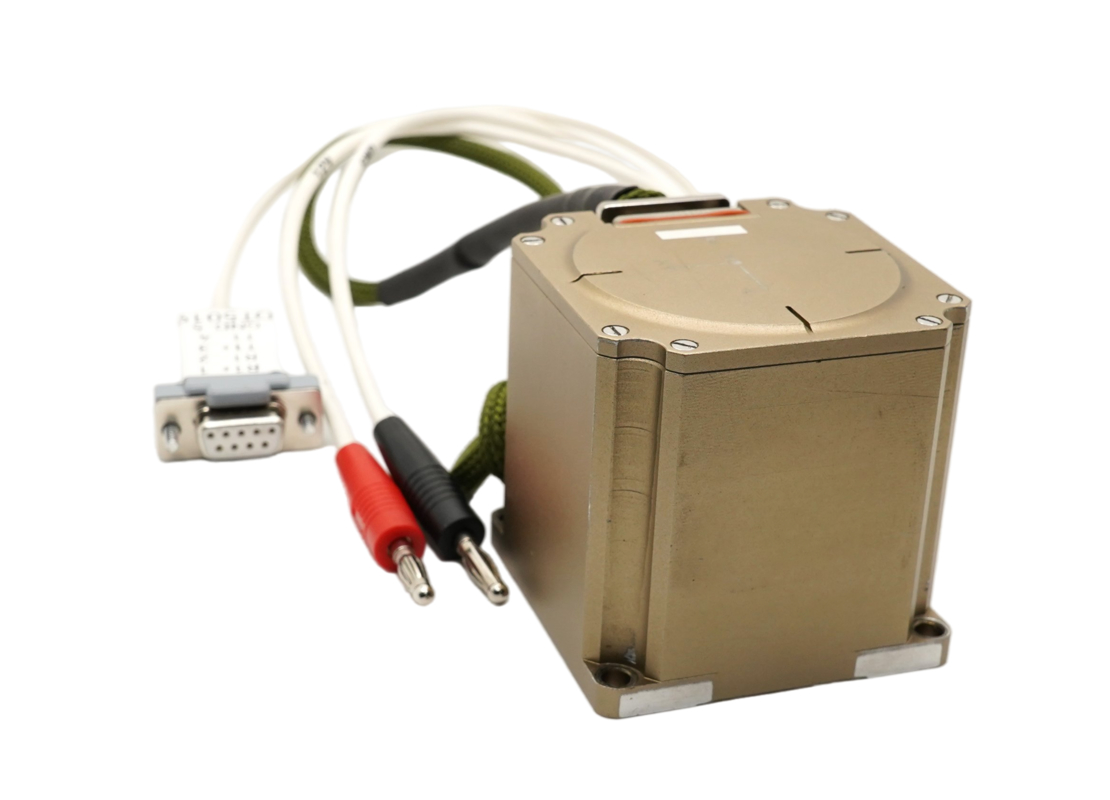

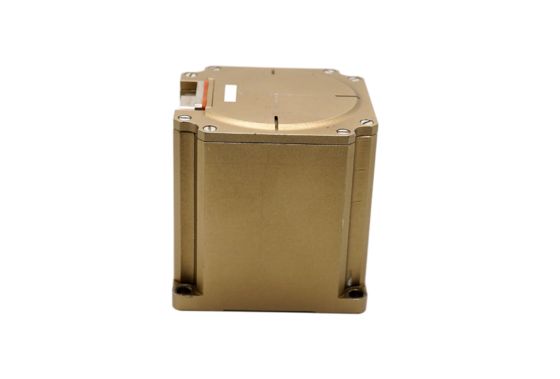

2025 New Generation Fiber Optic Gyro North Finder ≤ 0.7° accuracy

2025 New Generation Fiber Optic Gyro North Finder ≤ 0.7° accuracy

ब्रांड नाम: Firepower
मॉडल संख्या: NF102
एमओक्यू: 1
कीमत: 4000$
भुगतान की शर्तें: एल/सी,टी/टी
आपूर्ति करने की क्षमता: 500/महीना
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
अज़ीमुथ त्रुटि:
±0.7°
नेविगेशन ट्रैकिंग त्रुटि:
±0.7°
झुकाव अनुकूलता:
± 15 °
बिजली की खपत:
≤1w
आउटपुट मोड:
आरएस422/आरएस232
आयाम:
60x60x60 मिमी
उत्पाद का वजन:
≤ 400 ग्राम
परिचालन तापमान:
-30 ℃ ~ + 65 ℃
पैकेजिंग विवरण:
स्पंज+ कार्टन
आपूर्ति की क्षमता:
500/महीना
प्रमुखता देना:

fiber optic gyro north finder

,

high accuracy gyro north finder

,

2025 gyro north finder

उत्पाद वर्णन
2025 New Generation Fiber Optic Gyro North Finder ≤ 0.7° Accuracy
Product Specifications
  • Supply voltage: 9 ~ 12 V
  • Product dimensions: 60×60×60/46×53 (4×M4)
  • Product weight: ≤ 400 g
  • Operating temperature: -30℃ to +65℃
  • Storage temperature: -55℃ to +85℃
Main Parameter Indexes
Project Unit Industrial grade N F -102
Output mode
RS422/RS232

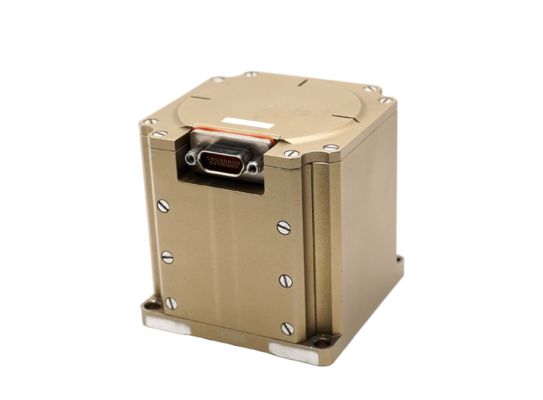

Connector
J30JM-15ZKP
Power consumption W ≤1
Azimuth error ° ±0.7
Navigation tracking error ° ±0.7 (≤5min, rotation speed ≤10°/s)
Tilt adaptability ° ±15

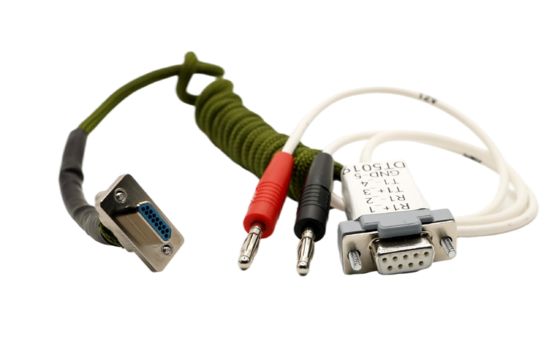

J30JM-15ZKSP Wiring Definition
Serial number Definition Type Interface
1 R- Input RS422 user interface
2 R+ Input
3 T+ Output
4 T- Output
5 IO+ Input External North Seeking Switch
6 IO- Output
7 +12VGND Input Power ground
8 +12VGND Input
9 RS232_GND GND RS232 user interface
10 RS232_TX Output
11 RS232_RX Input
12 NC Reserved
13 NC Reserved
14 +12V Input 12 Power supply input
15 +12V Input
