| ब्रांड नाम: | 1 |
| मॉडल संख्या: | NF102 |
| एमओक्यू: | 1 |
| कीमत: | 2000$ |
| भुगतान की शर्तें: | एल/सी, डी/पी, टी/टी, वेस्टर्न यूनियन |
| आपूर्ति करने की क्षमता: | 500/महीना |
| Attribute | Value |
|---|---|

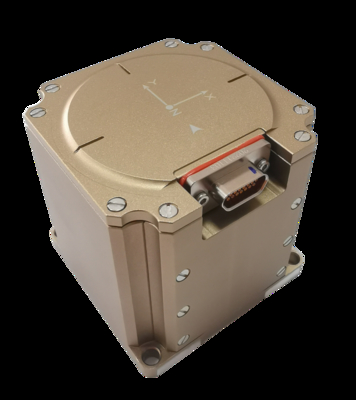

| Product Name | North Finder |
| Navigation tracking error | ± 0.5° (≤ 5min, rotation speed ≤ 10°/S) |
| Tilt adaptability | ±15° |
| Azimuth error | ≤ 0.5° |
| Interface | RS422 |
| Power supply | DC 9 ~ 12V |
| Weight | ≤ 400 g |
| Dimension | 60×60×60mm |
| Project | Unit | Industrial grade MF-102 |
|---|---|---|
| Output mode | RS422/RS232 | |

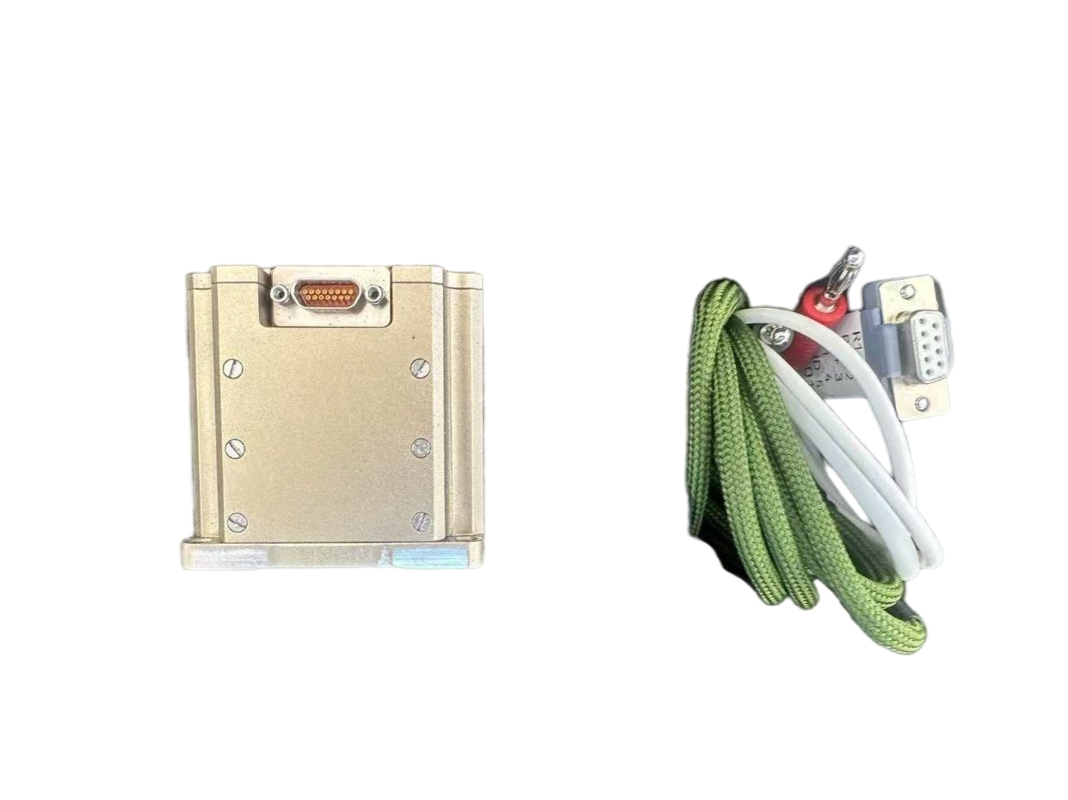

| Connector | J30JM-15ZKP | |
| Power consumption | W | ≤1 |
| Azimuth error | ° | ±0.5 |
| Navigation tracking error | ° | ± 0.5 (≤ 5min, rotation speed ≤ 10°/S) |
| Tilt adaptability | ° | ±15 |
The Fiber Optic Gyroscope North Finder provides rapid, autonomous determination of true north using advanced FOG technology. It measures the Earth's rotation to deliver high-precision azimuth and attitude information for UAVs, autonomous vehicles, robotics, marine vessels, and GPS-denied navigation systems.
