| ब्रांड नाम: | Firepower |
| मॉडल संख्या: | MGZ500HC-C1 |
| एमओक्यू: | 1 टुकड़ा |
| कीमत: | बातचीत योग्य |
| भुगतान की शर्तें: | टी/टी |
| आपूर्ति करने की क्षमता: | प्रति माह 500 टुकड़े |

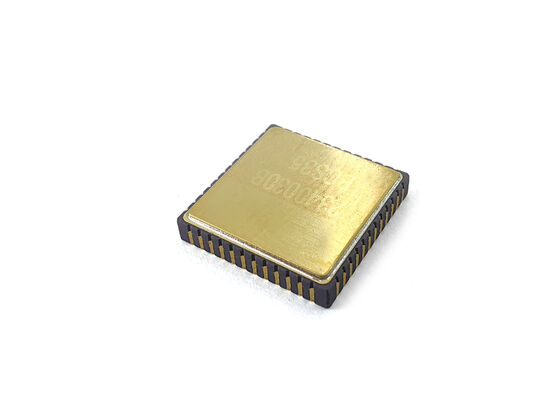

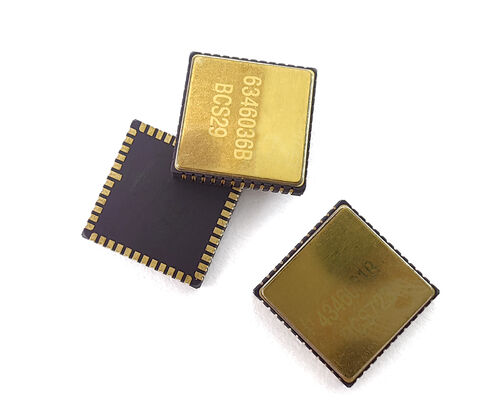

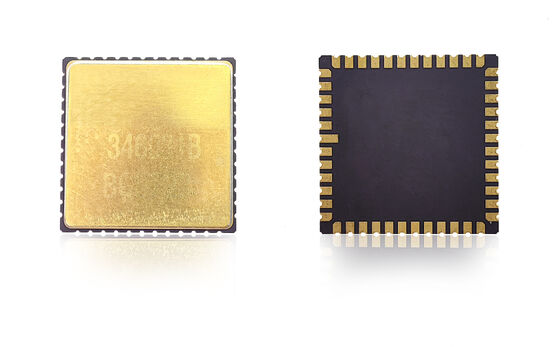

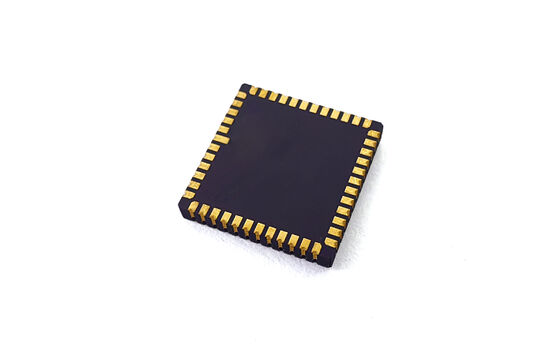

The MGZ500HC-C1 is a MEMS gyroscope chip designed with CAN bus interface for seamless automotive system integration. With 500°/s angular rate range and 100Hz bandwidth, it meets the demanding requirements of vehicle dynamics control and electronic stability systems. The direct CAN 2.0B interface simplifies ECU connectivity, while <0.08°/h bias stability and <0.03°/√h ARW ensure precise yaw rate and roll rate measurement. Built to withstand the automotive environment with -40°C to +85°C operating range and superior shock/vibration resistance.
| Performance | Unit | MGZ500HC-C1 |
|---|---|---|
| Range | deg/s | 500 |
| Band Width @3DB | Hz | 100 |
| Output accuracy (digital SPI/CAN) | bits | 24 |
| Output rate (ODR) | Hz | 12K |
| Delay | ms | <2 |
| Bias stability | deg/hr(1σ) | <0.08 |
| Bias stability (1σ 10s) | deg/hr(1σ) | <0.8 |
| Bias error over temperature (1σ) | deg/hr(1σ) | <10 |
| Scale factor at 25°C | lsb/deg/s | 16000 |
| Scale factor repeatability (1σ) | ppm(1σ) | <50 |
| Scale factor vs temperature (1σ) | ppm(1σ) | <200 |
| Scale factor non-linearity (1σ) | ppm | <200 |
| Angular random walk (ARW) | °/√h | <0.03 |
| Noise (Peak to Peak) | deg/s | <0.2 |
| G Value sensitivity | °/hr/g | <1 |
