| ब्रांड नाम: | Firepower |
| मॉडल संख्या: | F50 फ्रीस्टैंडिंग ऑप्टिक फाइबर कॉइल |
| एमओक्यू: | 1 |
| कीमत: | 700$ |
| भुगतान की शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन |
| आपूर्ति करने की क्षमता: | 500/महीना |

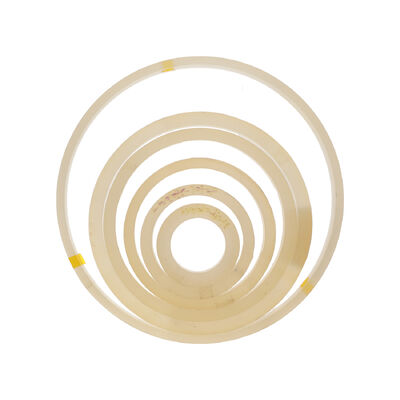

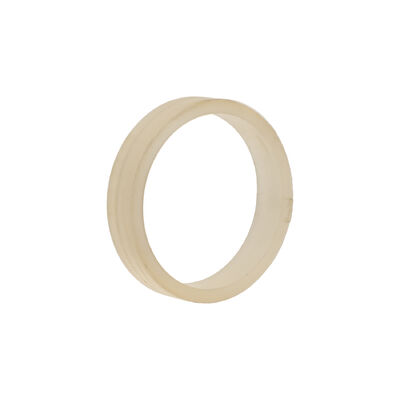

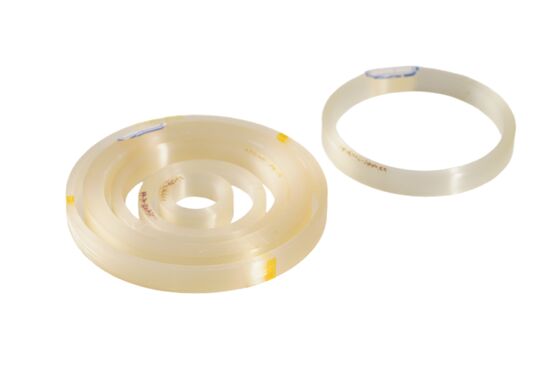

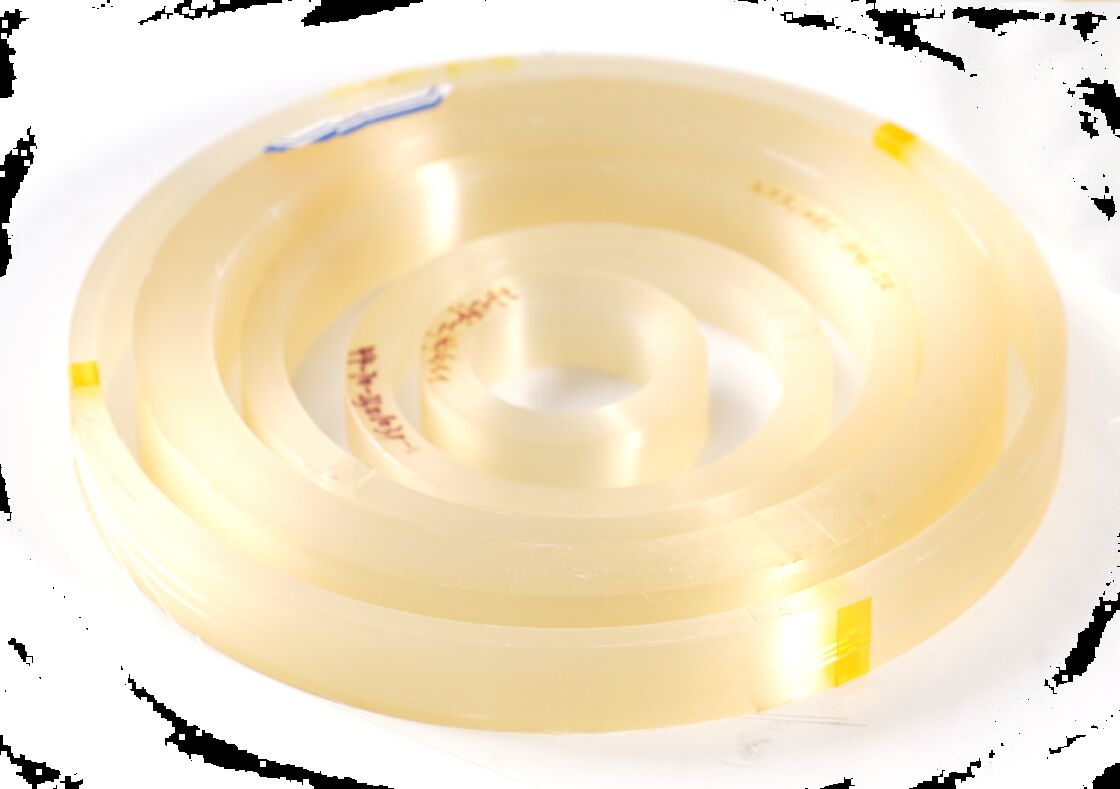

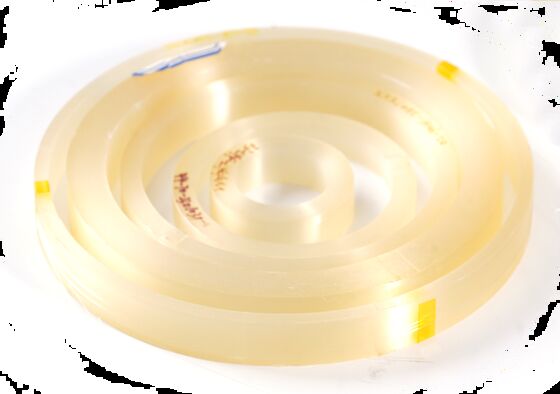

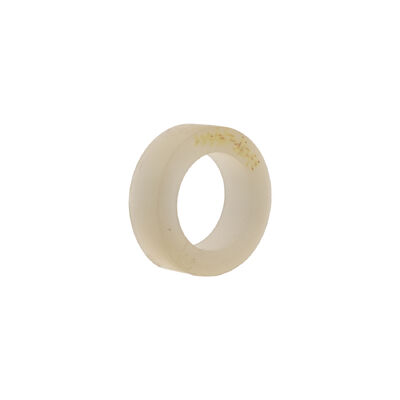

Our company specializes in professional design and manufacturing of optic fiber coils to meet specific customer and market application requirements. The φ50 low-precision fiber optic coil is engineered to satisfy assembly, performance, and diverse environmental application needs for φ50 fiber optic gyroscopes.
Primarily designed for closed-loop fiber optic gyroscopes with approximately 50mm diameter configurations.
This optic fiber coil model utilizes advanced multi-pole symmetric winding technology with 135μm thin diameter optical fibers and UV-cured adhesive. The resulting ring structure demonstrates exceptional temperature stability and vibration resistance, supporting mass production with consistent product quality.
| Feature | Unit | Index |
|---|---|---|
| Length | M | 260±5 |
| Optical Fiber | / | 80/135μm Optical Fiber |
| Layers | layer | 36 |
| Crosstalk | dB | ≤-22 |
| Full Temperature Crosstalk | dB | ≤-20 |
| Insertion Loss | dB | ≤0.2 |
| Constant Temperature Bias Stability (10s Smoothing) | °/h | ≤0.3 |
| Full Temperature Zero Bias Peak-to-Peak (10s Smoothing) | °/h | ≤1.5 |
| Temperature Range | °C | -45-80 |
| Temperature Rate of Change | °C/min | 1 |
| Geometric Dimensions | / | 29.0mm(ID) * 39.0mm(OD) * 9.2mm(H) |
