| ब्रांड नाम: | Firepower |
| मॉडल संख्या: | F50 फ्रीस्टैंडिंग ऑप्टिक फाइबर कॉइल |
| एमओक्यू: | 1 |
| कीमत: | 700$ |
| भुगतान की शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन |
| आपूर्ति करने की क्षमता: | 500/महीना |

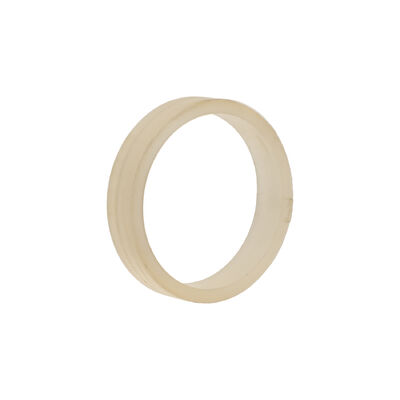

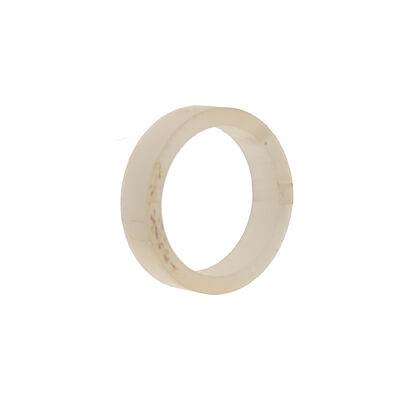

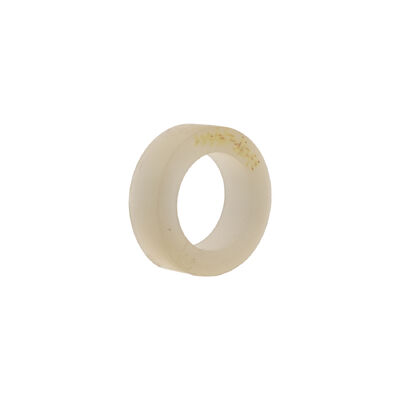

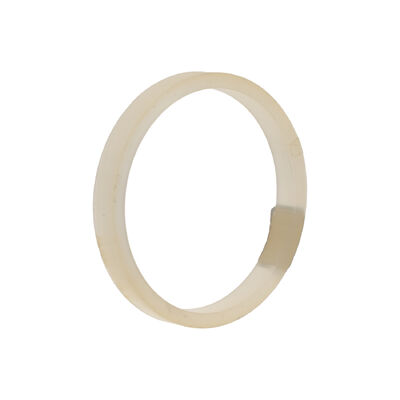

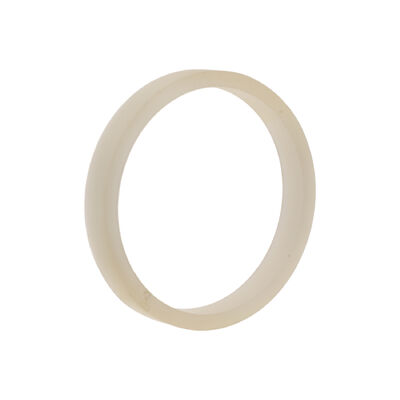

With mass production capabilities, this φ 50 fiber optic coil combines low crosstalk and low insertion loss to provide an affordable yet high-performance solution for fiber optic gyroscopes in commercial and industrial applications.
Mainly used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.
This model of optic fiber coil adopts a multi-pole symmetric winding method and uses 135um thin diameter optical fibers and UV-cured adhesive. The ring exhibits excellent temperature and vibration performance, and can be mass-produced with good product consistency.
| Feature | Unit | Index |
|---|---|---|
| Length | M | 260±5 |
| Optical Fiber | / | 80/135μm Optical Fiber |
| Layers | layer | 36 |
| Crosstalk | dB | ≤-22 |
| Full Temperature Crosstalk | dB | ≤-20 |
| Insertion Loss | dB | ≤0.2 |
| Constant Temperature Bias Stability (10s Smoothing) | °/h | ≤0.3 |
| Full Temperature Zero Bias Peak-to-Peak (10s Smoothing) | °/h | ≤1.5 |
| Temperature Range | °C | -45-80 |
| Temperature Rate of Change | °C/min | 1 |
| Geometric Dimensions | / | 29.0mm(ID) * 39.0mm(OD) * 9.2mm(H) |
The geometric dimensions, length, and performance of the optic fiber coil can be designed according to customer's application requirements.
