F50 Optical Fibre Coil Closed-Loop 50mm for Fiber Optic Gyro Inertial Navigation System

F50 Optical Fibre Coil Closed-Loop 50mm for Fiber Optic Gyro Inertial Navigation System

ब्रांड नाम: Firepower
मॉडल संख्या: F50 फ्रीस्टैंडिंग ऑप्टिक फाइबर कॉइल
एमओक्यू: 1
कीमत: 700$
भुगतान की शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन
आपूर्ति करने की क्षमता: 500/महीना
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
लंबाई:
260±5मी
प्रकाशित तंतु:
80/135μm ऑप्टिकल फाइबर
परतें:
36
क्रॉसस्टॉक:
≤-22dB
निविष्ट वस्तु का नुकसान:
≤0.2dB
लगातार तापमान पूर्वाग्रह स्थिरता (10s स्मूथिंग):
≤0.3 डिग्री / घंटा
पैकेजिंग विवरण:
बॉक्स+स्पंज
आपूर्ति की क्षमता:
500/महीना
प्रमुखता देना:

F50 optical fibre coil 50mm

,

Fiber optic gyro closed-loop coil

,

Inertial navigation system fiber coil

उत्पाद वर्णन

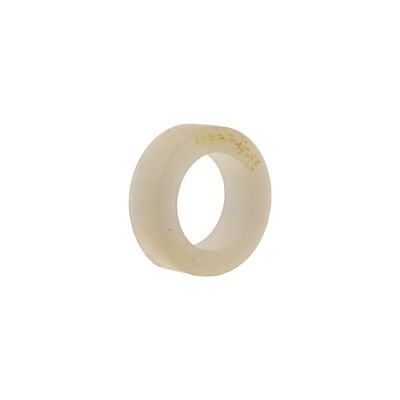

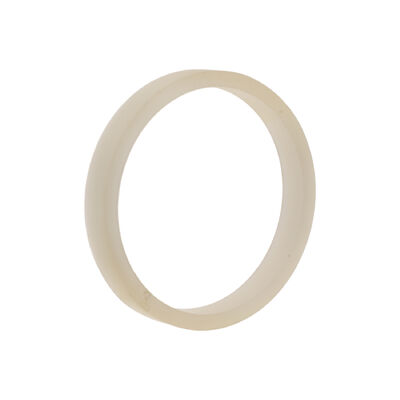

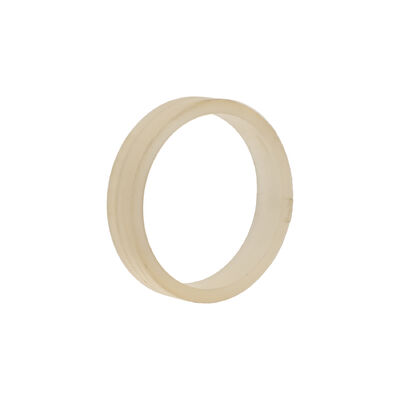

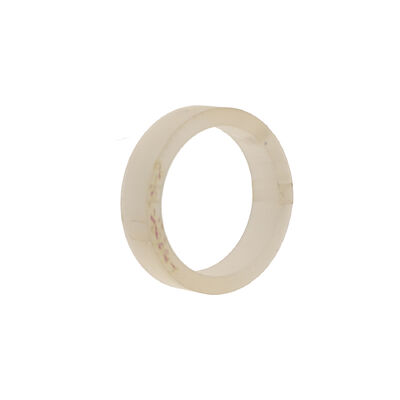

F50 Optical Fibre Coil Closed-Loop 50mm
Specialized φ 50 low-precision fiber optic coil engineered for closed-loop fiber optic gyroscopes with advanced manufacturing techniques.

Product Overview
Our φ 50 low-precision fiber optic coil features multi-pole symmetric winding technology, delivering superior temperature stability, minimal insertion loss, and exceptional vibration resistance for demanding inertial navigation applications.

Application Areas
Primarily designed for closed-loop fiber optic gyroscopes with approximately 50mm diameter configurations in inertial navigation systems.

Key Features
  • Multi-pole symmetric winding method for optimal performance
  • 135μm thin diameter optical fibers with UV-cured adhesive
  • Excellent temperature and vibration performance characteristics
  • Mass production capability with consistent product quality
  • Superior thermal stability and minimal signal loss
Technical Specifications
Feature Unit Specification
Length M 260±5
Optical Fiber / 80/135μm Optical Fiber
Layers layer 36
Crosstalk dB ≤-22
Full Temperature Crosstalk dB ≤-20
Insertion Loss dB ≤0.2
Constant Temperature Bias Stability (10s Smoothing) °/h ≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing) °/h ≤1.5
Temperature Range °C -45 to 80
Temperature Rate of Change °C/min 1
Geometric Dimensions / 29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)

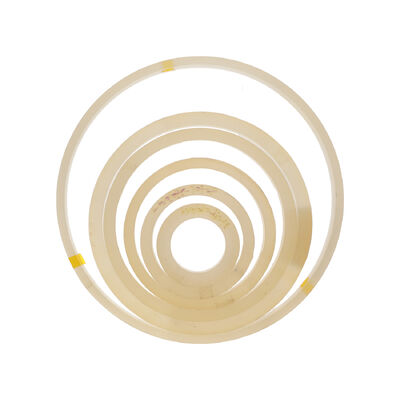

Customization Options
We offer comprehensive customization services. Geometric dimensions, fiber length, and performance parameters can be tailored to meet your specific application requirements and system integration needs.
