| ब्रांड नाम: | Firepower |
| मॉडल संख्या: | MFOG-910 |
| एमओक्यू: | 1 |
| कीमत: | 700$ |
| भुगतान की शर्तें: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन |
| आपूर्ति करने की क्षमता: | 500/महीना |

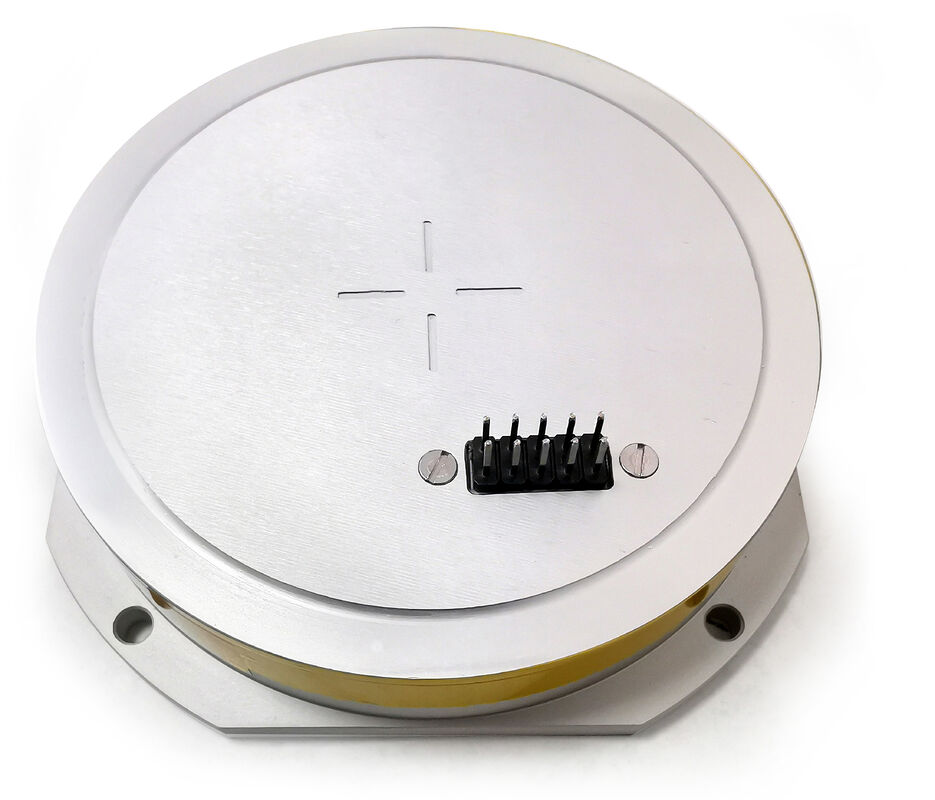

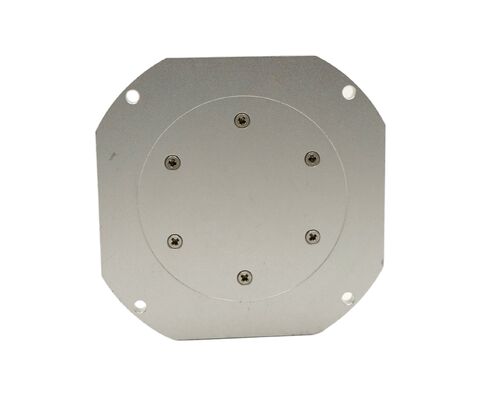

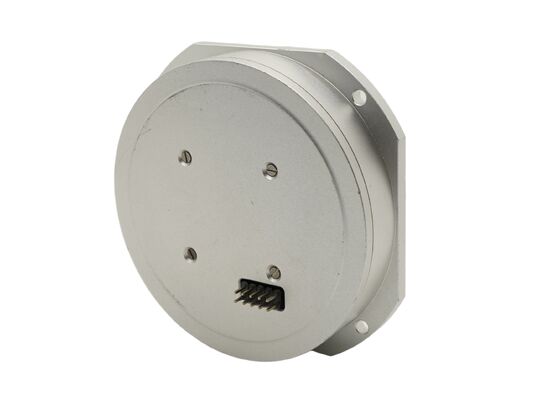

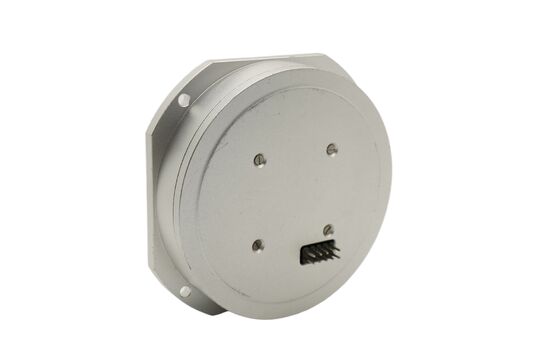

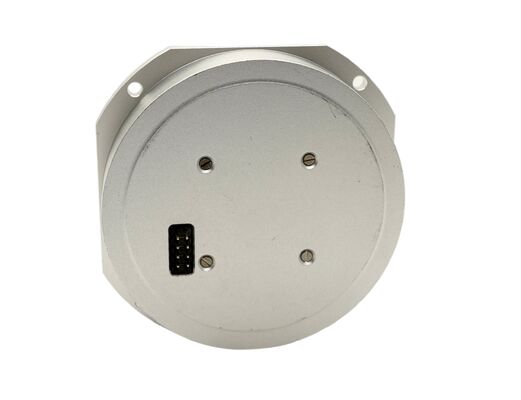

Based on the Sagnac effect, the MFOG-910 micro-nano fiber optic gyroscope integrates optics, mechanics, and electronics to achieve high-precision angular rate detection. With no moving parts, fast start-up, and low power consumption (≤1.5W), this sensor is ideal for autonomous robot attitude measurement, providing reliable support for robot navigation and motion control with its excellent zero-bias stability (≤0.8°/H).
This product features a simple structure with no moving parts or wear components, enabling fast startup, compact size, and lightweight design. It is suitable for attitude control and measurement applications across various carrier platforms.
| Parameter | Specification |
|---|---|
| Range (°/s) | ±240 |
| Scale Factor (mV/°/s) | 47±5 |
| Scale Factor Nonlinearity (ppm) | ≤1000 |
| Zero-Bias Stability (10s, 1σ, °/H) | ≤0.8 |
| Zero-Bias Repeatability (1σ, °/H) | ≤0.8 |
| 3dB Bandwidth (Hz) | ≥1000 |
| Random Walk (°/√H) | ≤0.02 |
| Power Supply (V) | 5±0.25+12 |
| Power Consumption (W) | ≤1.5 |
| Impact (g) | ≥1500 |
| Acceleration (g) | ≥70 |
| Life (years) | ≥15 |
| MTBF | ≥100,000 |
