| ब्रांड नाम: | FIREPOWER |
| मॉडल संख्या: | IMU6-36 |
| एमओक्यू: | 1 |
| भुगतान की शर्तें: | एल/सी,टी/टी |
| आपूर्ति करने की क्षमता: | 500/महीना |

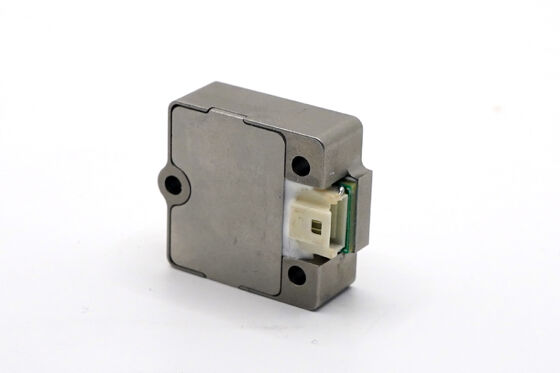

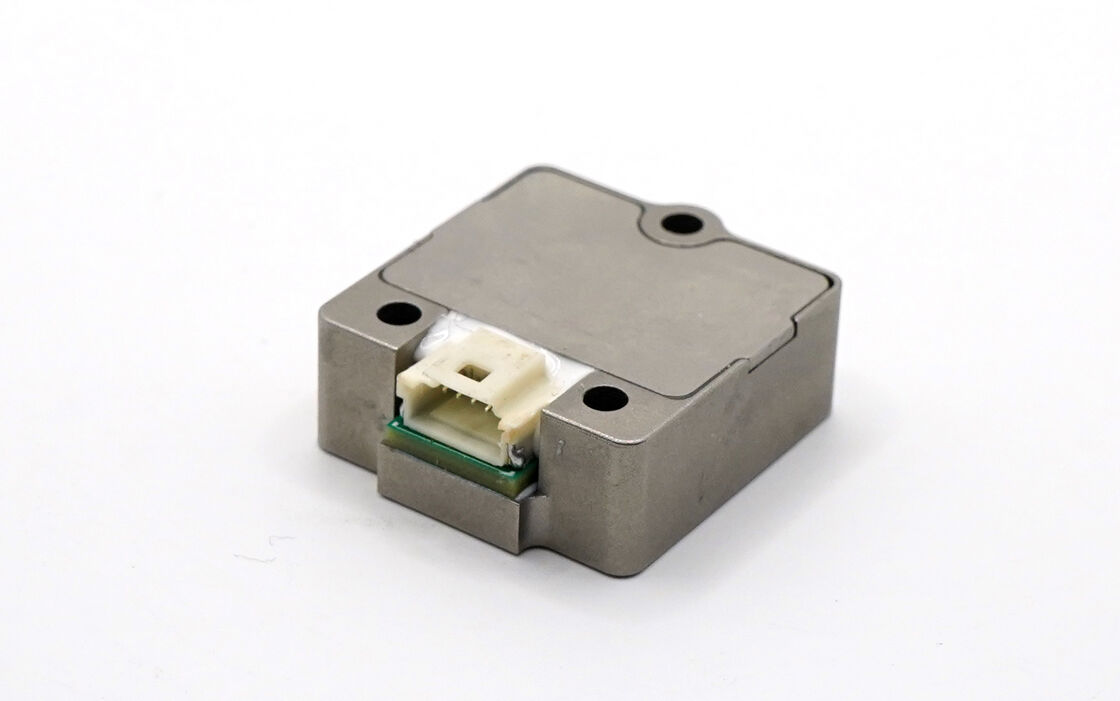

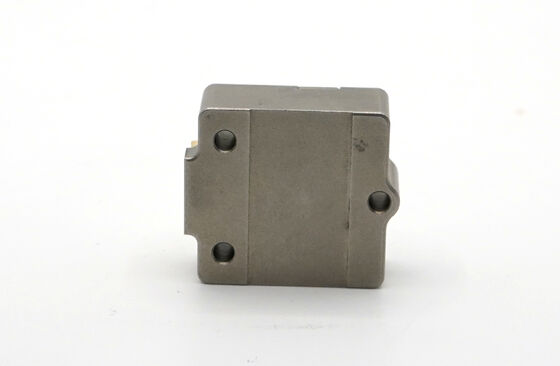

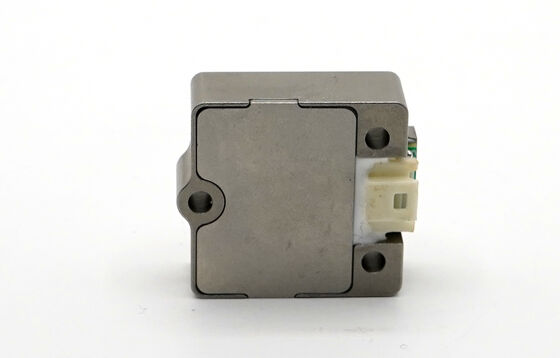

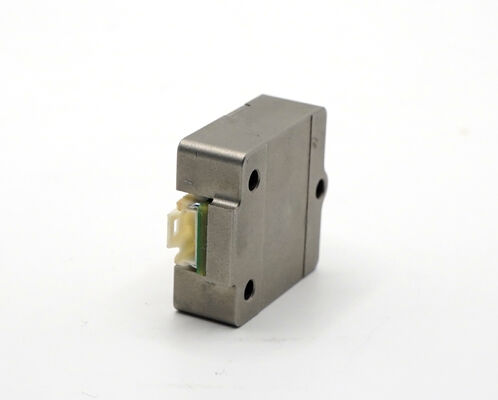

IMU6-36 delivers high-accuracy motion tracking, capable of handling a variety of complex applications. With a bandwidth of over 100Hz and a high-resolution angular rate range of ±480°/s, the IMU6-36 is designed for systems requiring rapid and precise motion feedback, such as real-time control systems and precision instrumentation.
| Parameter | Unit | Test Conditions | IMU6-36 |
|---|---|---|---|
| Measuring range | °/s | Configurable | ±480 |
| Zero-bias instability | °/h | Allan variance | ≤3 |
| Zero bias stability | °/h | 10s smooth, RMS, normal temperature | ≤8 |
| Zero bias variation at full temperature | °/h | 10 s smoothing, three-temperature zero-bias variation (-45 ℃, 25 ℃, 85 ℃) | ≤150 |
| Random walk | °/√h | Allan variance | ≤0.25 |
| Zero-bias repeatability | °/h | Q = 6, normal temperature | ≤5 |
| Scale factor nonlinearity | ppm | Normal temperature | ≤50 |
| Cross coupling | % | Normal temperature | ≤0.1 |
| Bandwidth | Hz | Configurable | ≥100 |
| Parameter | Unit | Test Conditions | IMU6-36 |
|---|---|---|---|
| Measuring range | g | Configurable 2 ~ 16g | ±16 |
| Zero bias stability | mg | 10s smooth, RMS, normal temperature | ≤0.1 |
| Zero bias variation at full temperature | mg | 10 s smoothing, three-temperature zero-bias variation (-45 ℃, 25 ℃, 85 ℃) | ≤2.5 |
| Zero-bias repeatability | mg | Q = 6, normal temperature | ≤0.1 |
| Scale factor nonlinearity | ppm | Normal temperature, ± 1 g | ≤200 |
| Cross coupling | % | Normal temperature | ≤0.1 |
| Bandwidth | Hz | Configurable | ≥100 |
| Parameter | Unit | IMU6-36 |
|---|---|---|
| Voltage | V | 5±0.3 |
| Starting current | mA | 100 |
| Steady-state power consumption | W | ≤0.25 |
| Ripple | mV | 100 |
| Parameter | Unit | IMU6-36 |
|---|---|---|
| Operating temperature | ℃ | -45~85 |
| Storage temperature | ℃ | -55~105 |
| Parameter | Unit | IMU6-36 |
|---|---|---|
| Weight | g | 18±1 |
| Start time | s | ≤2 |
