| ब्रांड नाम: | Firepower |
| मॉडल संख्या: | एनएफ701ए |
| एमओक्यू: | 1 |
| कीमत: | 5000$ |
| भुगतान की शर्तें: | एल/सी, टी/टी, डी/पी |
| आपूर्ति करने की क्षमता: | 500/पीसीएस |

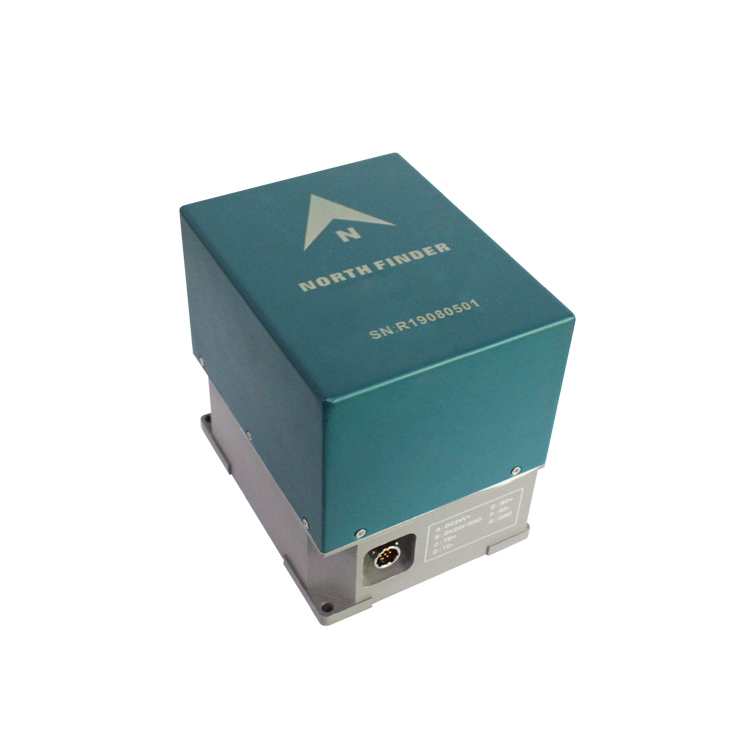

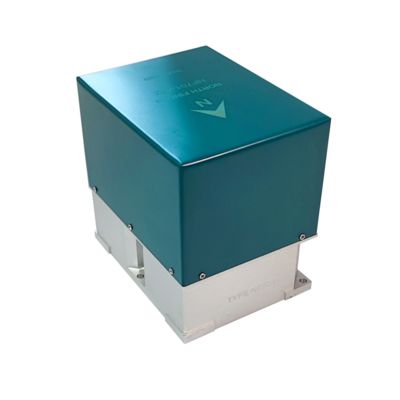

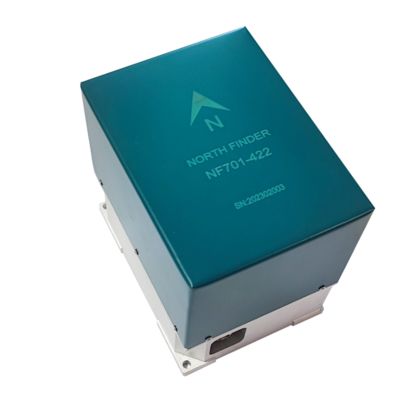

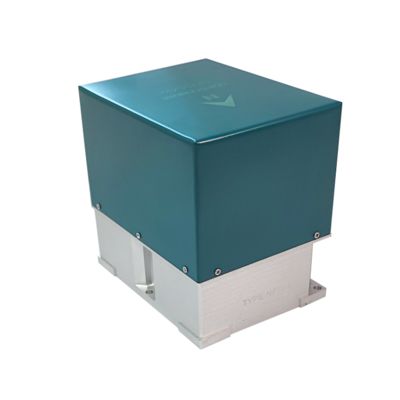

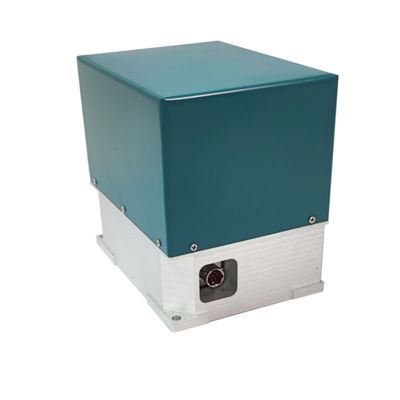

The Fiber Optic Gyroscope North Finder provides precise true-north orientation for navigation, mapping, and weapon guidance systems. This all-in-one device automatically detects the Earth's rotational rate and computes accurate azimuth and attitude data within 3 minutes.
The system integrates a high-accuracy FOG, accelerometer, motorized turntable, and embedded computer. With ≤0.3° north-seeking accuracy and ≤0.05° horizontal accuracy, it delivers stable, repeatable performance for UAVs, armored vehicles, and surveying equipment.
Dimension (mm): 115 * 90 * 110
Insulation resistance: The insulation resistance between independent circuits and between circuits and shell shall not be less than 10 MΩ under standard atmospheric conditions.
| Plug Pin Number | Functional Definition |
|---|---|
| a | DC12V ~24V |
| b | DC12V ~24V GND |
| c | TD+ |
| d | TD- |
| e | RD+ |
| f | RD- |
| g | GND |
