High Accuracy 0.3° Fiber Optic Gyro North Finder with Fast Start-Up

High Accuracy 0.3° Fiber Optic Gyro North Finder with Fast Start-Up

ब्रांड नाम: Firepower
मॉडल संख्या: एनएफ701ए
एमओक्यू: 1
कीमत: 5000$
भुगतान की शर्तें: एल/सी,टी/टी
आपूर्ति करने की क्षमता: 500/पीसीएस
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
उत्तर की ओर देखने की सटीकता:
0.3° / 0.5°
शक्ति:
15 डब्ल्यू
वज़न:
≤ 2 किलो
आयाम:
115 × 90 × 110 मिमी
स्टार्टअप का समय:
≤ 3 मिनट
इंटरफ़ेस:
रुपये-422
पैकेजिंग विवरण:
स्पंज+ कार्टन
आपूर्ति की क्षमता:
500/पीसीएस
प्रमुखता देना:

high accuracy fiber optic gyro

,

fast start-up north finder

,

0.3° precision gyro sensor

उत्पाद वर्णन
High Accuracy 0.3° Fiber Optic Gyro North Finder with Fast Start-Up

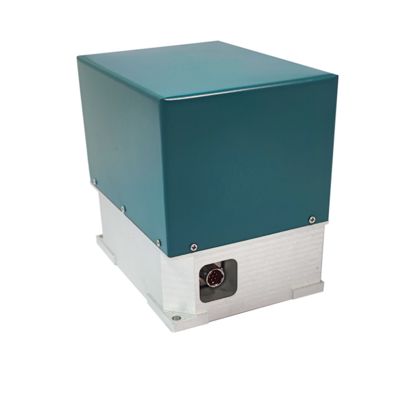

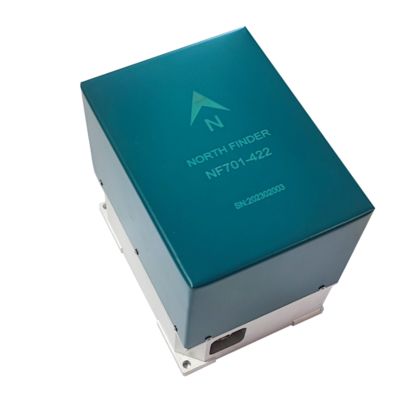

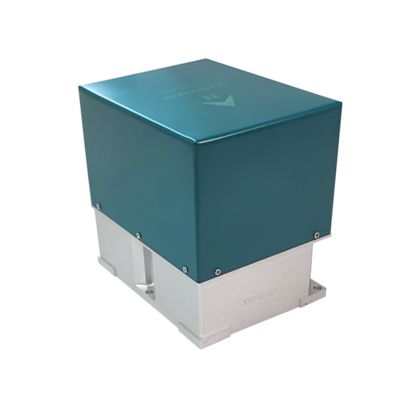

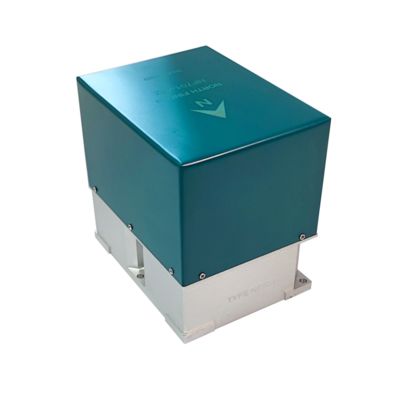

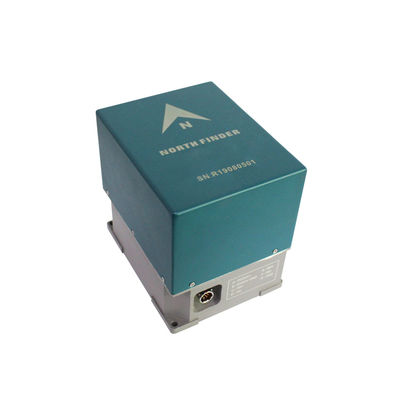

The NF701 Fiber Optic Gyroscope North Finder is a compact, high-precision north-seeking system that determines true north autonomously without GNSS. It measures the Earth's rotation rate through a fiber optic gyroscope and computes azimuth and attitude information for mobile platforms.

Featuring north-seeking accuracy of ≤0.3° (1σ), alignment time under 3 minutes, and RS-422 interface, it integrates a FOG, accelerometer, rotation servo, and embedded controller. The system operates reliably across -40°C to +70°C and is suitable for surveying, drilling, and defense applications requiring rapid, magnetic-independent north reference.

High Accuracy 0.3° Fiber Optic Gyro North Finder with Fast Start-Up 0
Overall Dimensions
Dimension (mm): 115 × 90 × 110
Technical Specifications
  • North seeking time: ≤ 3 min
  • North seeking accuracy (1σ): ≤ 0.3° (NF701A); ≤ 0.5° (NF701B)
  • Horizontal accuracy: ≤ 0.05° (1σ)
  • Circumference: ≤ 0.5° (1σ)
  • Weight: ≤ 2 kg
  • Power supply: DC 12V ~ 24V
  • Power consumption: 15 W (peak)
  • Interface: RS422
  • Working mode: automatic self-check after power on, controlled by upper computer, sends results after completion
Environmental Requirements
  • Working temperature: -40°C ~ +70°C
  • Storage temperature: -55°C ~ +85°C
  • Humidity: relative humidity less than 95%
  • Appearance: Metal surface free of rust, coating without blistering or peeling
Electrical Performance
Insulation resistance: ≥10 MΩ between independent circuits and between circuit and shell under standard conditions
Reliability
  • MTBF ≥ 1000 hours
  • MTTR ≤30min
External Interface
Power input: DC12V ~24V
Output: Serial port
Plug Pin Definition (Interface Y50EX-0607TX2)
Plug pin number Functional definition
a DC12V ~24V
b DC12V ~24V GND
c TD+
d TD-
e RD+
f RD-
g GND
