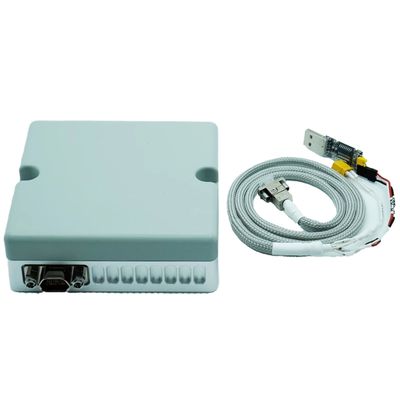

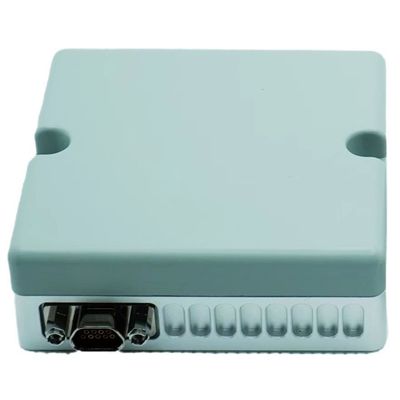

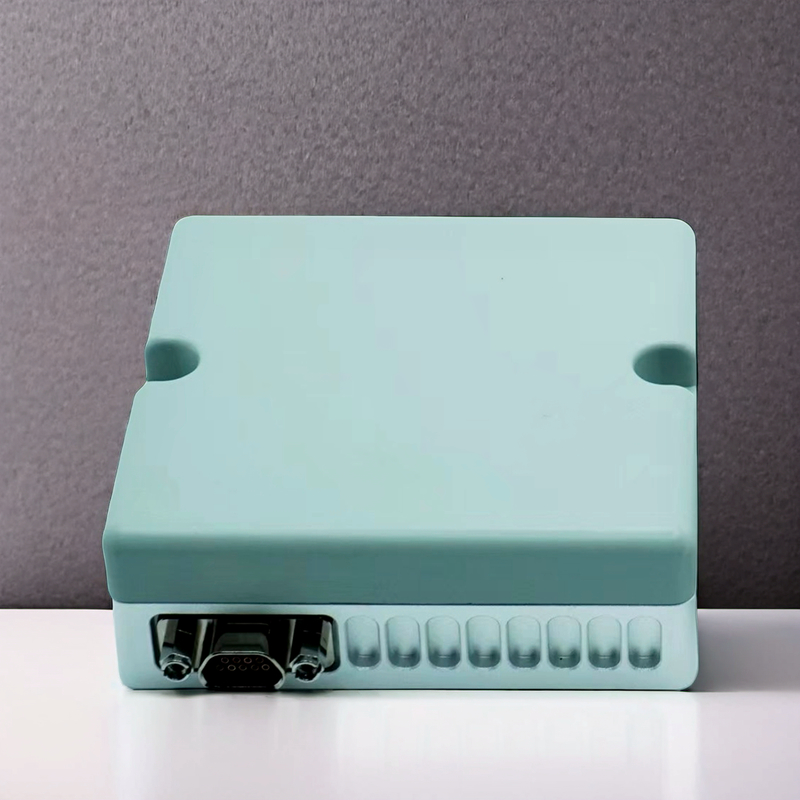

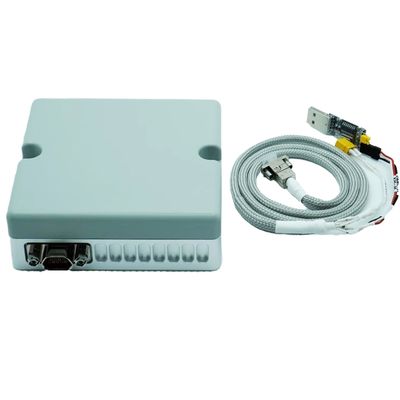

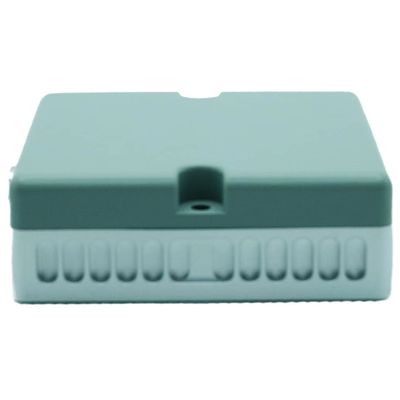

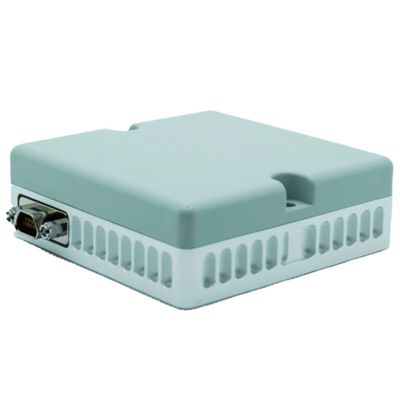

16-Array Advanced Anti-Jamming Antenna for Satellite Ground Station Calibration

16-Array Advanced Anti-Jamming Antenna for Satellite Ground Station Calibration

ब्रांड नाम: Firepower
मॉडल संख्या: FPD24005-66
एमओक्यू: 1
कीमत: बातचीत योग्य
भुगतान की शर्तें: एल/सी, टी/टी
आपूर्ति करने की क्षमता: 500/महीना
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
प्रोडक्ट का नाम:
एंटीना रिसीवर
एकतरफा हस्तक्षेप:
85dbc से बेहतर
बहु-दिशात्मक हस्तक्षेप:
65dbc से बेहतर
जामिंग हवाई क्षेत्र:
Azimuth: 0 ° ~ 360 °, ऊंचाई: -90 ° ~ 90 °
आयाम:
(66 ± 0.5) मिमी एक्स (66 ± 0.5) मिमी एक्स (22) 0.5) मिमी
बिजली की खपत:
7W
वज़न:
<150g
आपूर्ति की क्षमता:
500/महीना
प्रमुखता देना:

16-array anti-jamming antenna

,

satellite ground station antenna

,

fiber optic gyro calibration antenna

उत्पाद वर्णन
16-Array Advanced Anti-Jamming Antenna for Satellite Ground Station Calibration

Model: FPD24005-66-GNSS-12V. This advanced anti-jamming antenna protects platforms from both unintentional interference and malicious attacks, significantly enhancing PNT (Positioning, Navigation, and Timing) information security.

Product Features
  • Advanced anti-deception capabilities
  • Jamming power detection for convenient calibration and system testing
  • Supports secondary development with spectrum monitoring and histogram analysis
  • 4-array element single-frequency anti-jamming (B1, L1, and E1 frequency points)
  • Built-in navigation module outputs positioning information via NEMA0183 protocol
Key Performance Indicators
Anti-Interference Capability
  • Unidirectional interference: >85dBc
  • Multi-directional interference: >65dBc
Interference Types
  • Decoy jamming
  • Band-limited white Gaussian interference
  • Spread spectrum matched spectrum interference
  • Pulse jamming and sweep jamming
  • Mixed interference
Additional Specifications
  • Anti-jamming airspace: Azimuth 0°-360°, Elevation -90°-90°
  • Dimensions: (66 ± 0.5)mm * (66 ± 0.5)mm * (22 ± 0.5)mm
  • Power consumption: 7W (normal temperature, including positioning module)
  • Weight: <150g
Interface Description
J30J-9ZKP Pin Definition
Pin No. Definition Remark
1/2 VCC12V Power supply 12V
3/4 GND Power supply 12V
5 UART_TXD1 Upgrade serial port, TTL level
6 UART_RXD1 Upgrade serial port, TTL level
7 UART_DGND Ground
8 UART_TXD2 Serial port of positioning module, TTL level
9 UART_RXD2 Serial port of positioning module, TTL level
