| ब्रांड नाम: | Firepower |
| मॉडल संख्या: | MFOG-40 |
| एमओक्यू: | 1 |
| कीमत: | 1350$ |
| भुगतान की शर्तें: | एल/सी, डी/पी, टी/टी, वेस्टर्न यूनियन |
| आपूर्ति करने की क्षमता: | 500/महीना |

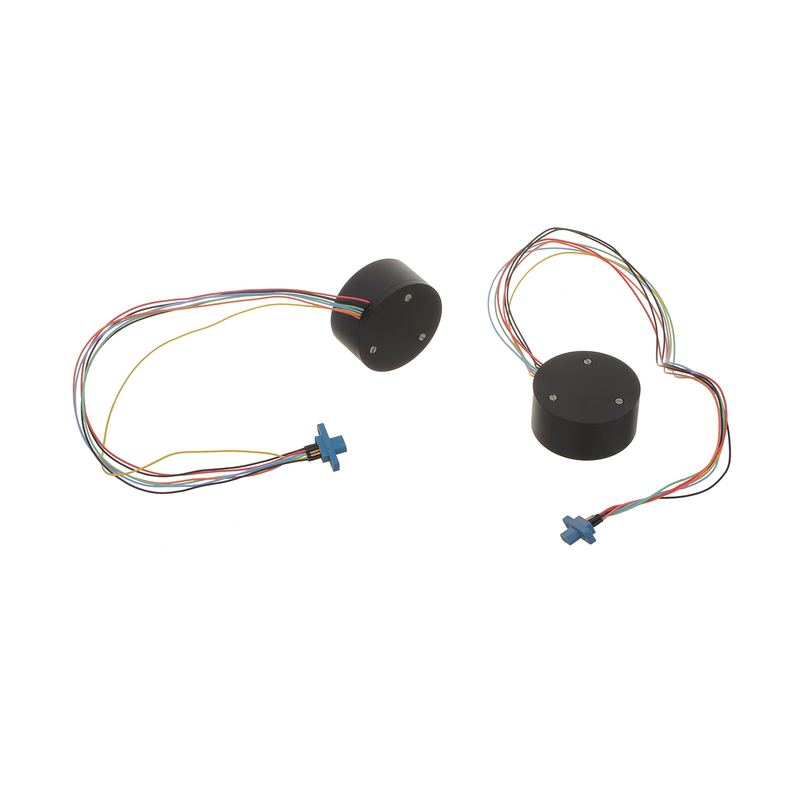

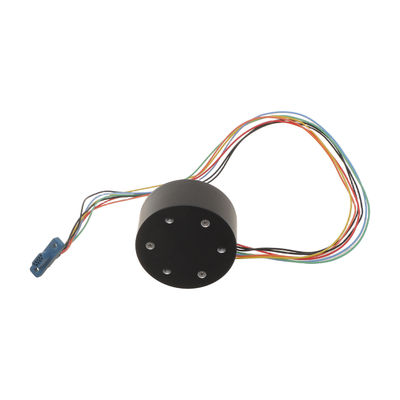

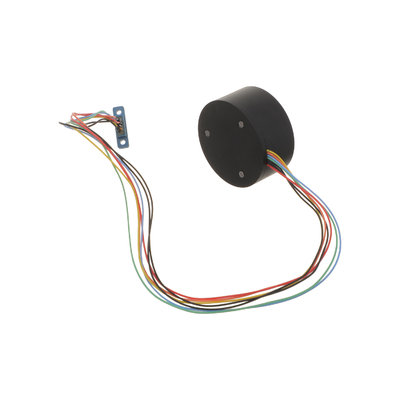

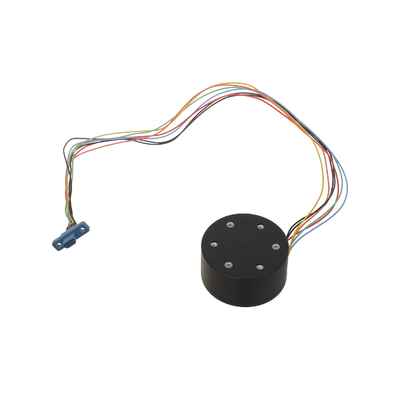

The MFOG-40 Micro-Nano Fiber Optic Gyroscope is an advanced angular rate sensor integrating optical, mechanical, and electronic technologies. Utilizing the Sagnac effect with micro-nano fiber devices, it delivers high-precision measurement by detecting phase differences between counter-propagating light beams, processed through sophisticated electronics for precise control and measurement applications.
| Parameter | Specification |
|---|---|
| Voltage | 4.85V~5.15V |
| Ripple | 20mV |
| Electric current | 0.2A |
| Node number | Color | Definition |
|---|---|---|
| 1 | Tangerine | RS422 R- |
| 2 | Blue | RS422 R+ |
| 3 | Green | RS422 T+ |
| 4 | Yellow | RS422 T- |
| 5 | Black | GND |
| 6 | Black | GND |
| 7 | Red | 5V |
| Parameter | Specification |
|---|---|
| Range (°/s) | ±300 |
| Scale Factor (LSB/°/s) | 3600 |
| Scale factor nonlinearity (ppm) | ≤500 |
| Zero-bias stability (10s, 1σ, °/H) | ≤0.5 |
| Zero-bias repeatability (1σ, °/H) | ≤0.5 |
| Angular random walk (°/H1/2) | ≤0.02 |
| Zero-bias stability at full temperature (°/H) | ≤1.5 |
| 3dB Bandwidth (Hz) | ≥300 |
| Power supply (V) | 5±0.15 |
| Power Consumption (W) | ≤1.5 |
